ATOM ORIGINAL
CLAMP
It is the most general hose clamp with a wide variety of uses.
[BAND]
MATERIAL : SS304
WITDH : 13mm
THICKNESS : 0.5mm or 0.6mm
[HOUSING]
MATERIAL : SS304
[BOLT]
MATERIAL : STEEL or SS304
Supports SAE J1508.

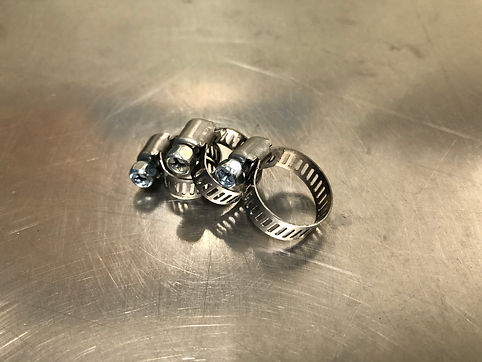

ATOM MINI
CLAMP
It is the most general hose clamp with mini size.
[BAND]
MATERIAL : SS304
WITDH : 8mm
THICKNESS : 0.5mm
[HOUSING]
MATERIAL : SS304
[BOLT]
MATERIAL : STEEL or SS304
Supports SAE J1508
SEMI HI-TORQUE
CLAMP
It is a product that complements the torque in a general hose clamp. This product satisfies performance and price between General and HI-TORQUE.
[BAND]
MATERIAL : SS304
WITDH : 15.3mm
THICKNESS : 0.6mm
[HOUSING]
MATERIAL : SS304
[BOLT]
MATERIAL : SS304
HI-TORQUE
CLAMP
The band width of 15.8mm has high tensile performance. It is very concise but has good performance.
[BAND]
MATERIAL : SS304
WITDH : 14.2mm or 15.8mm
THICKNESS : 0.8mm
[HOUSING]
MATERIAL : SS304
[BOLT]
MATERIAL : SS304 or STEEL
Supports SAE J1508.
CONSTANT-TORQUE
CLAMP
Hose clamp with anti-loosening capability. It is mainly used in a lot of vibration, and it also has high-tensile performance.
[BAND]
MATERIAL : SS304
WITDH : 14.2mm or 15.8mm
THICKNESS : 0.8mm
[HOUSING]
MATERIAL : SS304
[BOLT]
MATERIAL : SS304 or STEEL
Supports SAE J1508

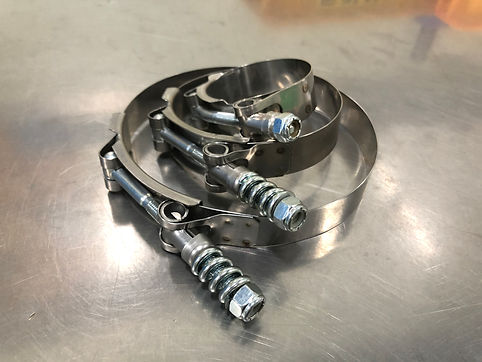

T-BOLT
CLAMP
T-BOLT with various types. Spring, bolt, and bridge types are divided into several types according to the use or customer preference. ATOM can produce all kinds.
[TYPE]
SPRING or Non-SPRING
BRIDGE or Flat-BRIDGE
STRAIGHT T-BOLT or BENDING T-BOLT
[BAND]
MATERIAL : SS304
WITDH : 19mm
THICKNESS : 0.6mm
[BOLT]
MATERIAL : STEEL
Supports SAE J1508
* Custom materials and specifications available
NON-PERFORATED
CLAMP
European (British type) hose clamp. It features a non-perforated band and an incision-free pipe-type housing.
[BAND]
MATERIAL : STEEL
WIDTH : 9.7mm or 11.7mm
THICKNESS : 0.7 mm
[BOLT]
MATERIAL : STEEL
* Custom materials and specifications available
NON-PERFORATED
CLAMP
European (German type) hose clamp. It features a non-perforated band and an incision-free pipe-type housing.
[BAND]
MATERIAL : SS or STEEL
WIDTH : 9.7mm or 11.7mm
THICKNESS : 0.6 mm
[BOLT]
MATERIAL : SS or STEEL
[HOUSING]
TYPE : SS or STEEL
Supports DIN 3017.
* Custom materials and specifications available

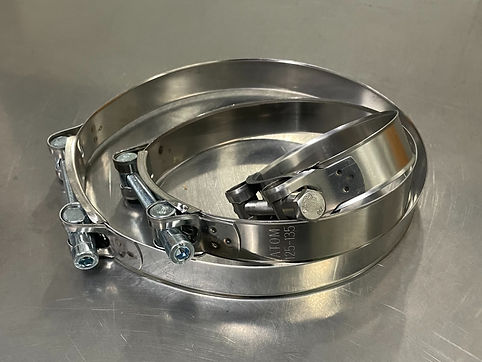

HEAVY DUTY
CLAMP
One of a kind of clamp with strong torque for high pressure.
[BAND]
MATERIAL : SS304
WIDTH : 24mm
THICKNESS : 0.8 mm
[BOLT]
MATERIAL : SS or STEEL
[HOUSING]
TYPE : SS or STEEL
* Custom materials and specifications available
WIRE
CLAMP
It is a wire type clamp. ATOM offers a variety of surface treatments.
[WIRE]
MATERIAL : SS304
THICKNESS : 2.2mm, 2.5mm, 3.0mm
[BOLT]
MATERIAL : SS304
[PLATE]
MATERIAL : SS304
* It is not produced in steel material.
P-TYPE
CLAMP
P type hose clamps are finished with PVC or rubber. It is one of the widely used types, and the dimensions are mainly made to order.
[TYPE]
PVC or RUBBER
[BAND]
MATERIAL : STEEL
COLOR : YELLOW, WHITE, BLACK
TYPE : CR6+ FREE or NOT
Supports DIN 3016.
* Custom materials and specifications available
SPRING
CLAMP
Mainly used for soft small hoses. It is not a worm gear type hose clamp, but a hose clip with a simple one-touch assembly method.
[BAND]
MATERIAL : SK5 or 51CrV4
COLOR : SILVER or BLACK
TYPE : GEOMET
Supports DIN 3021.
EAR
CLAMP
Ear clamps are a fairly simple device for connecting a hose to a pipe or a fitting like a hose barb connection.
[BAND]
MATERIAL : SS304
505R, 706R, 906R, 1008R Series
EXHAUST SEAL
CLAMP
This is a clamp for fastening two mufflers of different sizes together. It is characterized by having two inner diameters.
[BAND]
MATERIAL : SS304
WITDH : 74mm
THICKNESS : 0.5mm or 0.6mm
[BOLT]
MATERIAL : STEEL
* Custom materials and specifications available
V-BAND
CLAMP
Supports strong pipe connections. Most are produced to customer specifications.
[BAND]
MATERIAL : SS304
* Custom materials and specifications available
* V-BAND can also be produced
DOUBLE BOLT
CLAMP
Two bolts, upper and lower, provide uniform fastening force from top to bottom.
